Orno wall socket - surface-mounted double IP54 - max. 3680 watt - 10.8×6.5 cm - White/Anthracite
8.9/10 from 538 reviews of our shop
Ideaal als je...
- Buiten een stopcontact wilt dat stof en waterstralen weerstaat
- Twee apparaten tegelijk aansluit, samen tot 3680 watt
- Op een smal stuk muur of in een krappe hoek monteert
- Kinderbeveiliging en randaarde in beide stopcontacten wilt
Let op als je...
- Een Nederlandse handleiding nodig hebt: deze is Engels en Duits
- Een aan/uit-schakelaar of indicatielampje wilt: die zitten er niet op
- Usb-poorten wilt om direct op te laden: die heeft dit model niet
Description

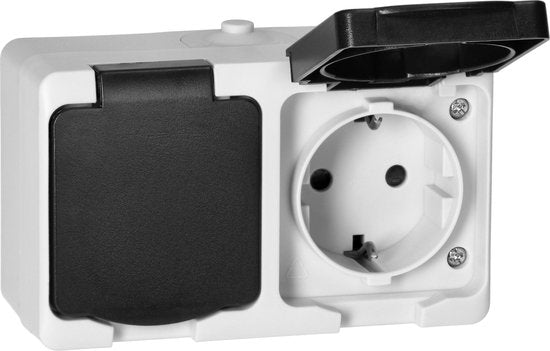

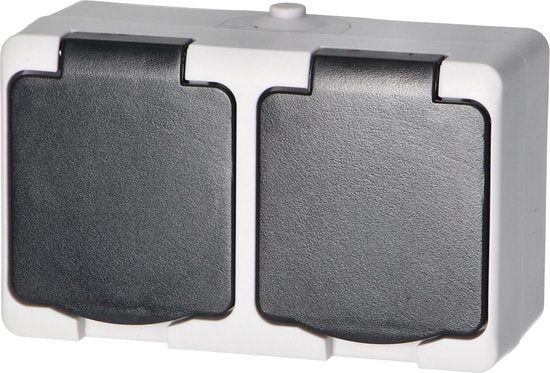

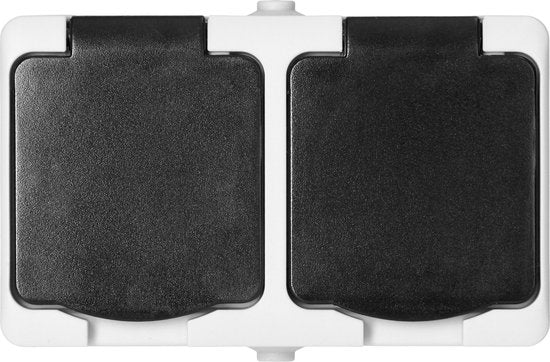

Double socket for outdoor use with protection class IP54 and a hinged cover over the sockets. The two Schuko sockets together deliver up to 3680 watts.
About this product longer description
This wall socket box from ORNO is designed for outdoor use and has protection class IP54: the housing is protected against dust and water jets. A hinged cover folds over the sockets. The model belongs to the MINI series and, thanks to its size of 10.8 by 6.5 centimetres with a depth of 38 millimetres, can also be fitted in a tight corner or on a narrow stretch of wall.
It has two Schuko sockets, both with earthing and a child safety feature. Together you can connect up to 3680 watts, at a rated voltage of 230 volts, a rated current of 16 amps and a frequency of 50 hertz. The wall socket box runs on a single phase. According to the manufacturer, that capacity is suitable for a wide range of uses, from power tools to garden lighting.
Installation is surface-mounted: the box is fitted onto the wall and doesn't need to be recessed into it. The wiring is secured with a screw connection. The housing is made of plastic with a matte finish and is available in white and anthracite. There's no on/off switch and no indicator light; this model doesn't have USB ports.
Features 6 features
- IP54 - protected against dust and water jets
- Two Schuko sockets - together up to 3680 watts at 230 volts and 16 amps
- Hinged cover - folds over both sockets
- Earthing and child safety - both sockets have a protective contact
- Surface mounting - fits onto the wall, no need to recess it into the wall
- Screw terminal - the wiring is secured with screws
Specifications 8 technical details
| Colour | White, Anthracite |
| Material | Plastic |
| Colour family | White, Black |
| Indoor or outdoor | For outdoor use |
| Manual language | English, German |
| Splash-proof | Yes |
| Dimensions (l x w x h) | 201 x 101 x 53 mm |
| Weight (incl. packaging) | 0.15 kg |
Item number P-13127-5EAN 5908254829338Brand Orno
What's in the box? 1 item
Wall socket

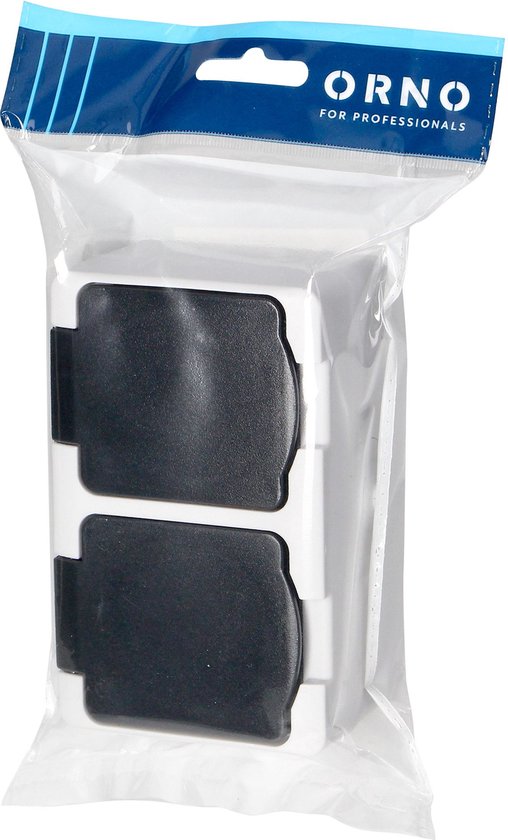

- 1x double wall socket
Frequently asked questions 4 questions
Can I use this wall socket box outdoors?
Yes, this model is designed for outdoor use. The housing has protection class IP54, which protects it against dust and water jets. There's a hinged cover over the sockets.
How much can I connect to it at once?
The two sockets together take up to 3680 watts. The rated voltage is 230 volts, the rated current 16 amps and the frequency 50 hertz, on a single phase.
How is it mounted?
Via surface mounting: the box is placed on the wall in a horizontal position and doesn't need to be recessed into the wall. You secure the wiring with a screw connection. This model isn't suitable for floor placement.
Does it have USB ports or a switch?
No. This model has no USB port, no on/off switch and no indicator light. You get two Schuko sockets with earthing and a child safety feature.
Warranty & returns conditions
- Caasi warranty - 1 year: product faulty? Contact Caasi. We arrange free repair or replacement. Is the product no longer in our range? Then you get the current market value refunded
- Covered: defects in materials and workmanship under normal use
- Not covered: wear and tear, damage from drops or knocks, incorrect use
- Returns policy: 30 days to change your mind - not satisfied? Return it for free
