Cabletech tuner - DVB-T2 H.265 HEVC TV receiver
8.9/10 from 538 reviews of our shop
Ideaal als je...
- Een oudere tv zonder HDMI wilt aansluiten via de SCART-connector
- Programma's wilt opnemen of een opname vooruit wilt programmeren
- Films, foto's of muziek van een usb-stick op je tv wilt afspelen
- Kanalen wilt beveiligen met een leeftijdsinstelling of wachtwoord
Let op als je...
- Een Nederlandse handleiding nodig hebt: die is in Duits en Engels
- Interactieve tv-diensten wilt gebruiken: die ondersteunt deze tuner niet
- Wilt opnemen zonder er zelf een usb-stick of schijf bij te kopen
Description
DVB-T2 tuner with H.265 HEVC receive digital terrestrial television in Full HD quality via DVB-T and DVB-T2. The Cabletech URZ0338A supports the new H.265 HEVC encoding standard, making it ready for changes in the digital television signal.
About this product detailed description
The Cabletech URZ0338A is a DVB-T2 tuner that receives digital terrestrial television via both the DVB-T and DVB-T2 standard. Thanks to support for H.265 HEVC decoding, the device keeps working even after any changes to the broadcasting standard.
Connecting to the TV is easy via HDMI (version 1.4b) for Full HD playback on modern televisions, or via the SCART connection for older models. Using the USB 2.0 port on the front panel, you can play films, photos or music from a USB stick or external drive, and save recordings with the built-in PVR function.
The tuner has a 7-day electronic programme guide (EPG), timeshift for pausing and rewinding live TV, and a timer for scheduling recordings in advance. Parental control makes it possible to secure channels with a password. Sound is output via the E-AC-3 (Dolby Digital Plus) encoding standard.

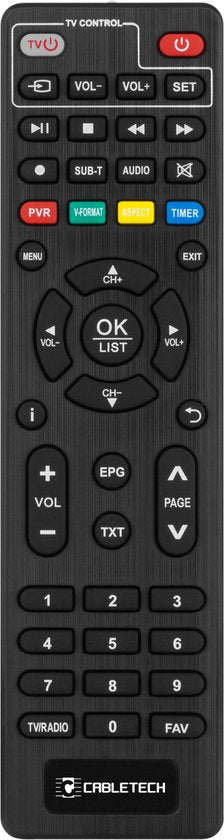

The included remote control has a TV Control function that, once programmed, lets you operate both the tuner and the television with a single remote. The LED display on the device shows the current channel number and status.
Features 8 features
- DVB-T2 with H.265 HEVC - receives digital TV via DVB-T and DVB-T2, including the new HEVC encoding standard
- Full HD via HDMI - connects to modern TVs via HDMI 1.4b for playback up to 1920×1080 pixels
- SCART connection - also suitable for older televisions via the Euro connector
- PVR and timeshift - record programmes via USB and pause or rewind live TV
- 7-day EPG - view the full TV schedule up to seven days ahead
- Multimedia player - play films, photos and music from a USB stick or external drive (FAT32 and NTFS supported)
- Dolby Digital Plus sound - sound output via E-AC-3 encoding standard
- Parental controls - secure channels with a password and set an age limit
Specifications 18 technical details
| Model number | URZ0338A |
| Reception standard | DVB-T2 / DVB-T |
| Video decoding | MPEG-2, MPEG-4, H.264, H.265 HEVC |
| Audio decoding | MPEG-1 Layer I/II, MPEG-2 Layer I/II, AAC, AAC+/HE-AAC, AC-3, Dolby Digital Plus (E-AC-3) |
| Maximum video resolution | 1920 × 1080 px (Full HD) |
| Video formats | Auto, 16:9, 4:3 LB, 4:3 PS |
| Supported file formats | H.264, HEVC, MP3, MP4, MKV, JPEG, AVI |
| Drive formatting | FAT32, NTFS |
| Connectors | HDMI 1.4b, SCART, USB 2.0, IEC antenna connector (ANT IN) |
| VHF frequency range | 177.5 - 236.5 MHz |
| UHF frequency range | 474 - 866 MHz |
| Bandwidth | 7 MHz, 8 MHz |
| Demodulation | QPSK, 16QAM, 64QAM, 256QAM |
| Internal memory | 4 MB |
| RAM | 512 MB DDR3 |
| Input voltage | 100-240 V, 50/60 Hz |
| Power consumption | Max. 7.5 W |
| Dimensions (l × w × h) | 140 × 80 × 30 mm |
| Colour | Black |
| Weight (incl. packaging) | 410 g |
Item number P-14007-9EAN 5901890110709Manufacturer number URZ0338ABrand Cabletech
What's in the box? 2 items
Package contents
- Cabletech URZ0338A DVB-T2 tuner
- Remote control (requires 2x AAA batteries, not included)
- User manual
Frequently asked questions 4 questions
What is the difference between DVB-T and DVB-T2?
DVB-T is the older standard for digital terrestrial television. DVB-T2 is its successor and offers more capacity, allowing more channels or channels of better quality to be broadcast. The Cabletech URZ0338A supports both standards, so you can keep watching even after any switch to DVB-T2.
Do I need a USB drive to record?
Yes, for the PVR recording function and timeshift you need a USB storage device, a USB stick or external drive. Connect it to the USB 2.0 port on the front panel of the tuner. The drive must be formatted as FAT32 or NTFS.
Can I connect the tuner to an older TV without HDMI?
Yes. Besides the HDMI connection, the URZ0338A also has a SCART connector (Euro connector). This lets you connect the tuner to televisions that don't have an HDMI input. Via SCART, the maximum picture quality is lower than via HDMI.
Does the remote control also work for my television?
The included remote control has a TV Control function. Once programmed, using the SET button and the buttons in the TV Control frame, you can operate certain functions of your television with the same remote. The exact steps are described in the user manual.
Warranty & returns conditions
- Caasi warranty - 1 year: product faulty? Contact Caasi. We arrange free repair or replacement. Is the product no longer in our range? Then you get the current market value refunded
- Covered: defects in materials and workmanship under normal use
- Not covered: wear and tear, damage from drops or knocks, incorrect use
- Returns policy: 30 days to change your mind - not satisfied? Return it for free
